Mower Rotary 36in RD 1979 95-36YR02 TIPL sn.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

IPL from Toro Master Parts Viewer
6 pages 420.62KB

Fits A-81 5-Speed and A-111 5-Speed tractors


Drive belt 107230 (1/2" x 60.1")
Spindle belt 8411 (1/2" x 76.94")

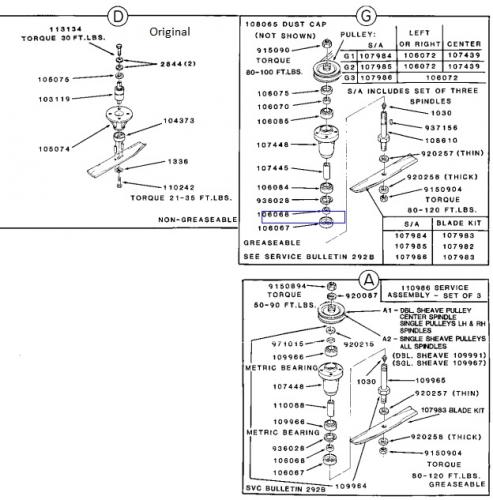

Mower spindle assemblies could be D, A1, G2 or Z

For A1 and G2 see service bulletin 292B



107982 3-blade set replaces 107435 left and right blades (12-1/8") and 107436 center blade (14-1/8") (Hole 3/4" round)


Mower Rotary 1979 36in RD model 95-36YR02




×
×
