About This File
IPL from Toro Master Parts Viewer
6 pages 420.62KB
Fits A-81 5-Speed and A-111 5-Speed tractors
Drive belt 107230 (1/2" x 60.1")
Spindle belt 8411 (1/2" x 76.94")

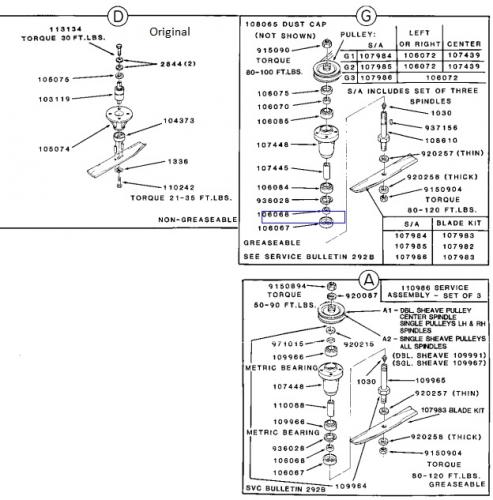

Mower spindle assemblies could be D, A1, G2 or Z
For A1 and G2 see service bulletin 292B
9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1979 36in RD model 95-36YR01
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
IPL from Toro Master Parts Viewer
6 pages 328KB
Shows blades with different center holes
Mower Rotary 1979 36in RD model 95-36YR02
