About This File
IPL from Toro Master Parts Viewer
8 pages 418.73KB
Fits B-81 and B-111 tractors
Drive belt 106533 (1/2" x 40.06")
Spindle belt 106751 (1/2" x 80.5")

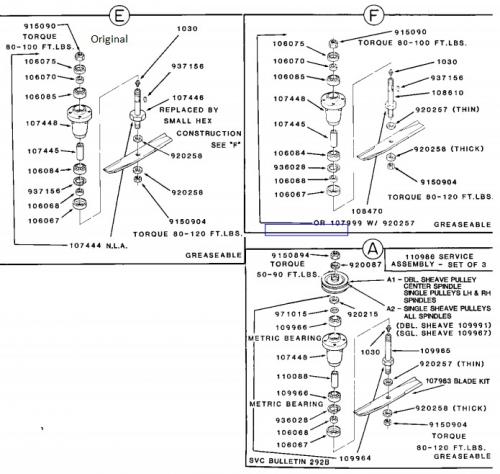

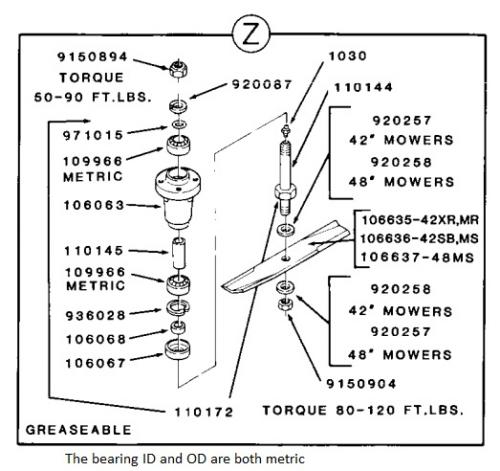

Mower spindle assemblies could be E, A2, F or Z
For A2 see service bulletin 292B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1979 36in RD model 95-36XR01
1979 serial numbers that have shown up for the 95-36XR01
025341 - Build date 1979 9080 March 21 Wednesday
