About This File
IPL from Toro Master Parts Viewer
6 pages 317.98KB
Drive belt 102607 (1/2" x 89.12") when used on medium frame 43-1/2" wheelbase tractors
1972 Commando 800 model 1-0110
1973 8hp 4-Speed model 1-0120
1974 B-80 4-Speed models 1-0140 and 1-0145
1974 B-100 Auto model 1-0510
1975 B-80 4-Speed model 1-0141
1975 B-100 Auto model 1-0511
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")

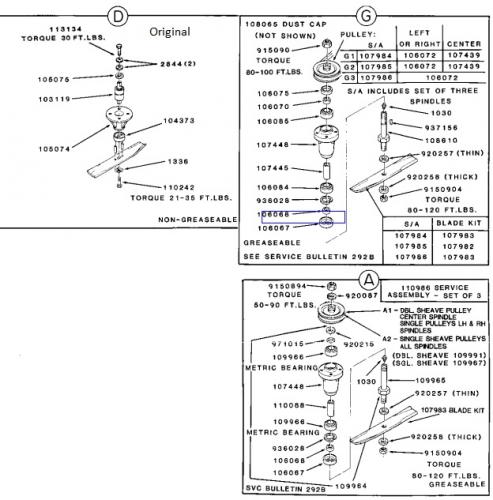

Mower spindle assemblies could be D, A1, G2 or Z
For A1 and G2 see service bulletin 292B
9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
8969 blade set available again from Toro June 4, 2019
Mower Rotary 1977 36in RD model 75-36XR02

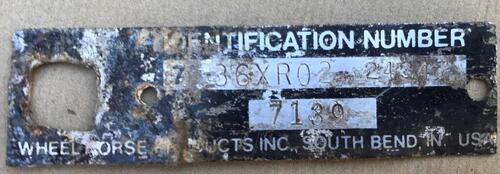

1977 serial numbers that have shown up for the 75-36XR02
024347 - Build date 1977 7139 May 19 Thursday
024787
