About This File
IPL from Toro Master Parts Viewer
5 pages 323.98KB
Fits A-90 4-Speed and A-100 4-Speed tractors
Drive belt 105477 (1/2" x 40.4")
Spindle belt 105476 replaced by 106751 (1/2" x 80.5")

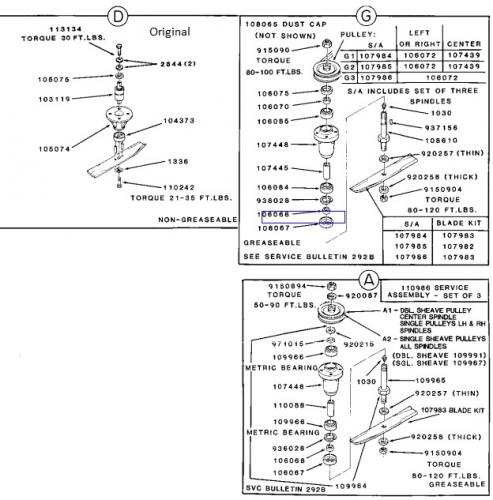

Mower spindle assemblies could be D, A2, G3 or Z
For A2 and G3 see service bulletin 292B
100776 14-1/8" center blade and 100777 12-1/8" left and right blades replaced by 101335 3-blade kit and no longer available from Toro (Hole 5/8in.x3/4in. Double-D)
2017 Oregon catalog part number 91-802 12-1/8" and Gator blade 96-632 12-1/8" still available.
101335 blade set available again from Toro June 4, 2019
Mower Rotary 1976 36in RD model 65-36MR03
1976 serial numbers that have shown up for the 65-36MR03
027044 - Build date 1976 615x Possibly June 02 Wednesday
