About This File
Operator manual #3319-585
24 pages 904.23KB

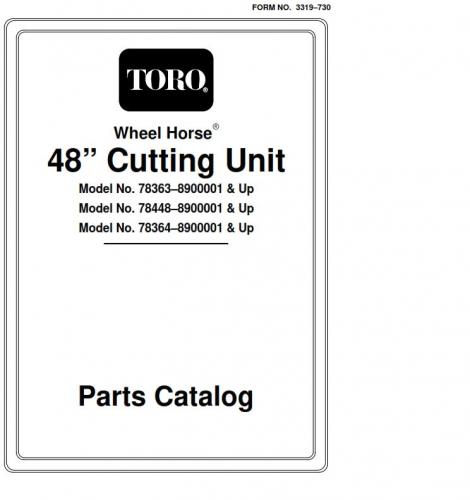

IPL #3319-730
16 pages 362.86KB
Fits 5xi tractors
Drive belt 95-4095 (HB x 97.54" or 5/8" x 97.54") - Used with adjustment knob on the front of the idler assembly
[2002-2005 78363 models
Drive belt 105-1490 (HB x 98.45" or 5/8" x 98.45") - Used with adjustment knob on the bottom of the idler assembly]
Spindle belt 95-3878 (HA x 102.44" or 1/2" x 102.44")
106078 blade replaced by 106637 3-blade set (3/4" round hole)

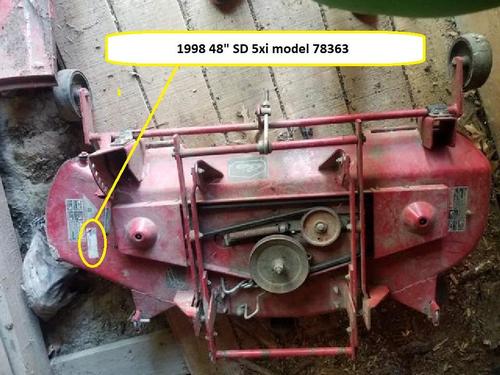

Mower Rotary 1998 48in SD model 78363 Serial 8900001-8999999
1998 serial numbers that have shown up for the 78363
8900333
8901581
8901838
8902032
8902081
8902248
8902958
8903039
