Mower Rotary 48in SD 1964 RM-484 OM IPL SN.pdf

Sign in to follow this

admin

4 Screenshots

About This File

Operator manual
IPL
8 pages 2.22MB - #182
5 pages 2.32MB - #A-7137

Fits 953, 1054 and 1054A tractors


Drive belt 1595 (1/2" x 66.95")
Spindle belt 1594 (1/2" x 107.21")

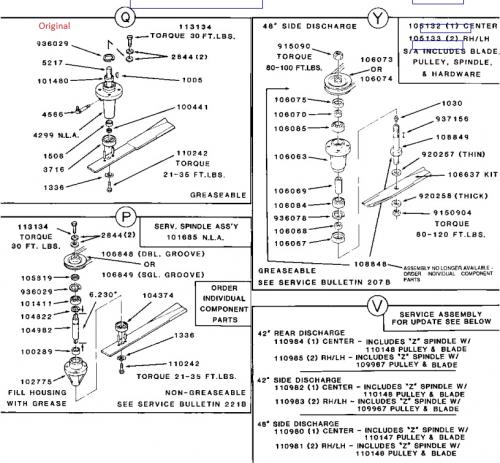

Mower spindle assemblies could be Q, P, V, Y or Z

For P see service bulletin 221B

For V and Y see service bulletin 292B



4380 blade replaced by 6758 and then by 100202 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)

Mower Rotary 1964 48in SD model RM-484

1964 serial numbers that have shown up for the RM-484
A-69485
A-69613




×
×
