About This File
Operator manual #810402R1 or 810402 R1
7 pages 885.24KB

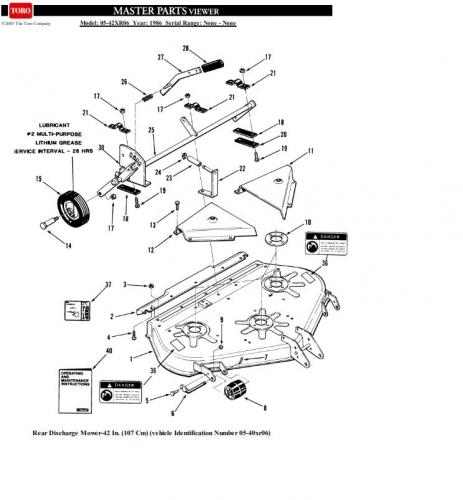

IPL from Toro Master Parts Viewer
7 pages 424.23KB
Fits 211-3 and 211-5 tractors
Drive belt 106523 replaced by 110141 (1/2" x 41")
Spindle belt 106516 (1/2" x 83")

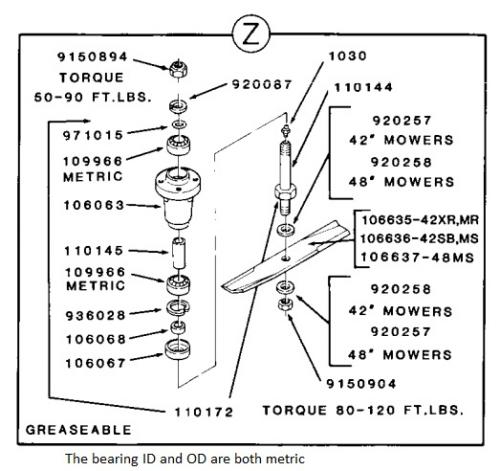

106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1986 42in RD model 05-42XR06
