About This File
IPL from Toro Master Parts Viewer
8 pages 418.14KB
Fits B-Series tractors
Drive belt 106523 replaced by 110141 (1/2" x 41")
Spindle belt 106516 (1/2" x 83")

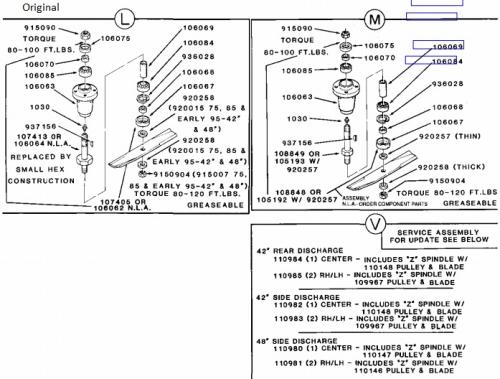

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1980 42in RD model 05-42XR01
1980 serial numbers that have shown up for the 05-42XR01
00011864 - Build date 1979 9351 December 17 Monday
00012146 - Build date 1979 9353 December 19 Wednesday
Mower Rotary 1981 42in RD model 05-42XR01
