About This File
Operator manual #3316-953
8 pages 1.35MB
Setup
1 page

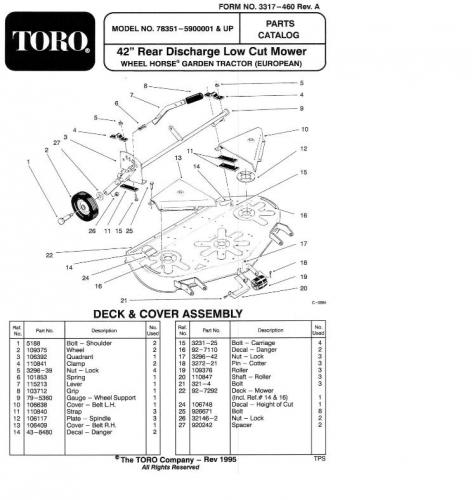

IPL #3317-460RevA or 3317-460 RevA
8 pages 1.31MB
Some manuals call this a low cut deck.
Application unknown. Sold 1993 1994 1995 and 1996. Suspect it fits exported 300 and 400-Series tractors
Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
Spindle belt 106125 (1/2" x 89.03")
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1995 42in RD model 78351 Serial 5900001-5999999
1995 serial numbers that have shown up for the 78351
5900241 - Located in Finland
Mower Rotary 1996 42in RD model 78351 Serial 6900001-5999999
