About This File
Operator manual #3315-936
8 pages 1.57MB
Setup
1 page

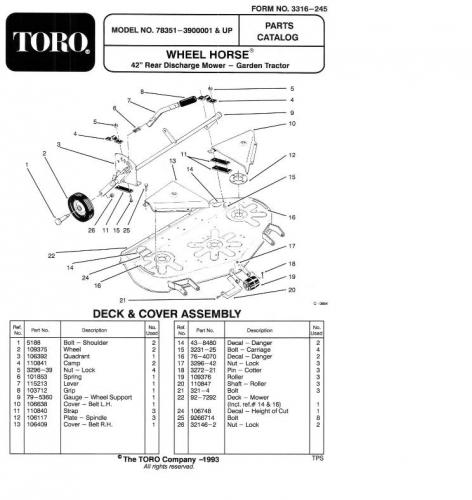

IPL #3316-245
8 pages 1.30MB
Some manuals call this a low cut deck.
Application unknown. Sold 1993 1994 1995 and 1996. Suspect it fits exported 300 and 400-Series tractors
Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
Spindle belt 106125 (1/2" x 89.03")
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
Mower Rotary 1993 42in RD model 78351 Serial 3900001-3999999
