Mower Rotary 42in SD 1984 05-42SB02 B-LT TIPL SN.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

IPL from Toro master Parts Viewer
10 pages 555.48KB

Fits B-Series and LT-Series

Drive belt 106523 replaced by 110141 (1/2" x 41")
Spindle belt 106516 (1/2" x 83")

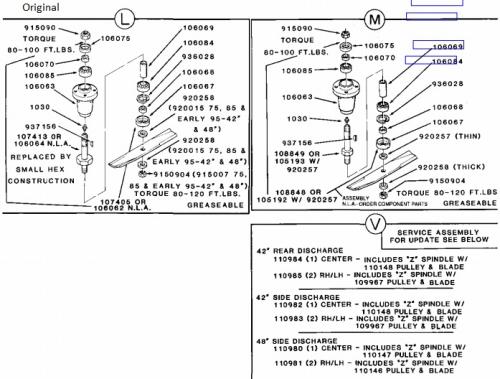

Mower spindle assemblies could be L, M, V or Z

For V see service bulletin 207B



106077 replaced by 106636 3-blade set (3/4" round hole)

Mower Rotary 1984 42in SD model 05-42SB02

1984 serial numbers that have shown up for the 05-42SB02

46003




×
×
