About This File
IPL from Toro Master Parts Viewer
6 pages 329.66KB
Shared with 48" deck so be careful selecting parts
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

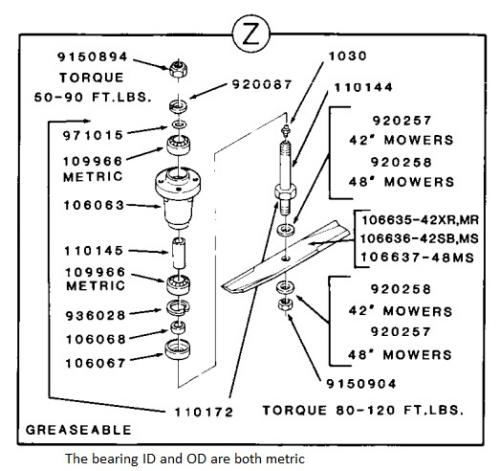

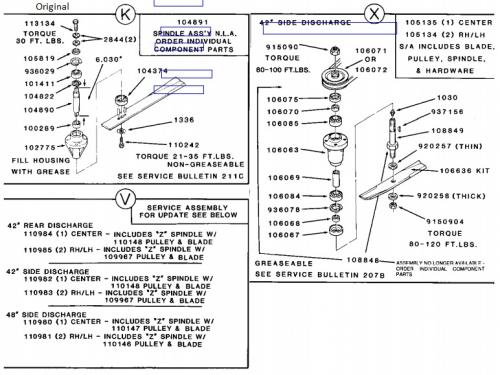

Mower spindle assemblies could be K, V, X or Z
For V and X see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1976 42in SD model 65-42MS02
