About This File
IPL from Toro Master Parts Viewer
9 pages 640.72KB
Fits C-Series tractors
Requires 5 cu. ft. dump cart
See PSB #296A Eaton hydro requires smaller fan # 108515
Blower belt 1574 replaced by 517439 (A x 33.10" or 1/2" x 33.1")
Pto belt for single cylinder models 107662 (1/2" x 116")
Pto belt for twin cylinder models require 107813 belt (1/2" x 118")
Model numbers found in the attachment list for the 1988 312-8e model E1-12K801 - Export model
May be similar and supplied by a European manufacturer
07-42VB91 - requires 42" SD deck
17-42VB91- requires 42" SD deck

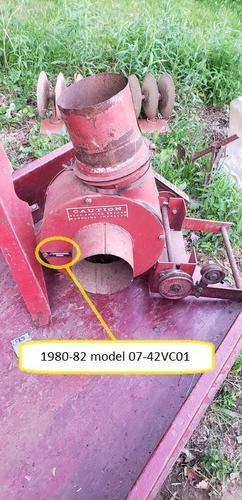

Mower Rotary 1980 42in SD model 07-42VC01 Vacuum
1980 serial numbers that have shown up for the 07-42VC01
03656 - Could be 1981 or 1982
03740 - Could be 1981 or 1982
03758 - Could be 1981 or 1982
Mower Rotary 1981 42in SD model 07-42VC01 Vacuum
1981 serial numbers that have shown up for the 07-42VC01
03656 - Could be 1980 or 1982
03740 - Could be 1980 or 1982
03758 - Could be 1980 or 1982
Mower Rotary 1982 42in SD model 07-42VC01 Vacuum
1982 serial numbers that have shown up for the 07-42VC01
03656 - Could be 1980 or 1981
03740 - Could be 1980 or 1981
03758 - Could be 1980 or 1981
Mower Rotary 1983 42in SD model 07-42VC01 Vacuum 20 bushel
Mower Rotary 1984 42in SD model 07-42VC01 Vacuum 20 bushel
