Tractor 1992 416-8 Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

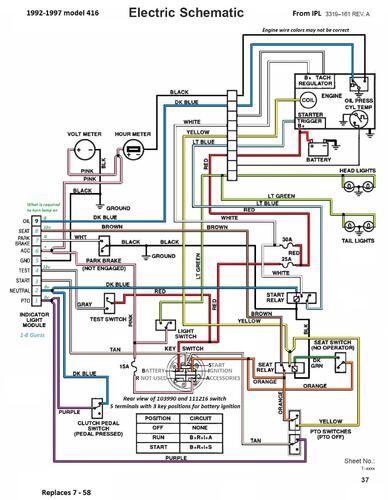

Detailed wiring from the Demystification Guide #492-4509 Color pdf
4 pages 1.5MB
Pages p7-57 to p7-60



Note - The original ignition circuit in the Guide incorrectly shows point and condenser ignition on page 7-59



1992 316-8e model R1-16O804 Serial 2000001-2999999 - Export model - This may be a 416-8e



1992 416-8 model 31-16O804 Serial 2000001-2999999




×
×
