About This File
IPL Wiring from Toro Master Parts Viewer
45 pages 3.90MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Kohler M12S-471527 ipl
25 pages 1.92MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.
Original IPL #810726R1
Original operator manual #810631R1
On the Belgium list

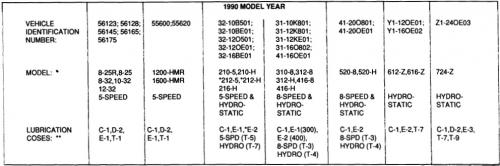

Lube chart SS
Details & Attachments
3 pages 122.45KB
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Seat gas strut/support 114344 can be replaced by Strongarm F4673

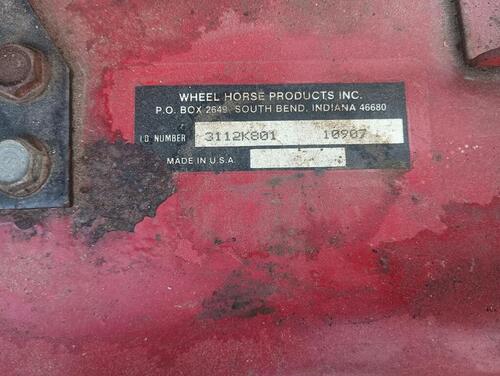

1990 312-8 model 31-12K801
1990 serial numbers that have shown up for the 31-12K801
0010004 - Build date 1989 9205 July 24 Monday
0010012
0010571
0010822 - Build date 1989 9249 September 06 Wednesday
0010907
0010977 - Build date 1989 9261 September 18 Monday [M]
0011247 - Build date 1989 9284 October 11 Wednesday
0011364 - Build date 1989 9284 October 11 Wednesday
0011636 - Build date 1990 0015 January 15 Monday
0011877
0012117
0012180
0012372 - Build date 1990 0019 January 19 Friday
0012387
0012788 - Build date 1990 0038 February 07 Wednesday
0012858
0012859
0012860
0012909
0013180
0013309
0013423 - Build date 1990 0060 March 01 Thursday
0013553
0013703 - Build date 1990 0061 March 02 Friday
0014015 - Build date 1990 0065 March 06 Tuesday
0014217 - Build date 1990 0075 March 16 Friday
0014353 - Build date 1990 0075 March 16 Friday
0014550 - Build date 1990 0078 March 19 Monday
0014680
0015037
0015413
0015680 - Build date 1990 0129 May 09 Wednesday
0015939
