About This File

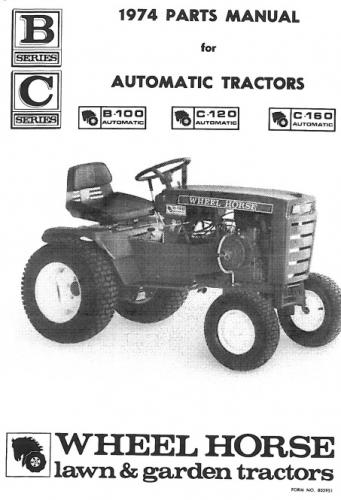

IPL #803951
16 pages 4.49MB

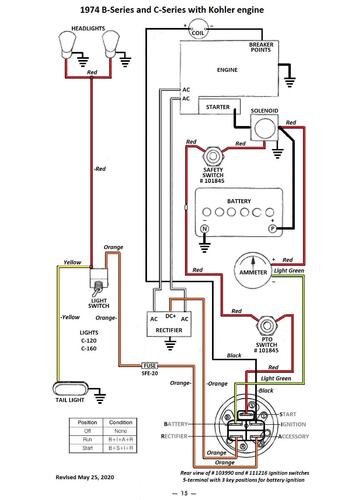

Wiring Color pdf
1 page 305KB
Medium frame 43-1/2" wheelbase
B-100 Auto uses 5090 transaxle with 1" axles
Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22") from belt chart and appears to be correct. Engine is closer to the front of the frame than the C-Series. Muffler appears to have a shorter inlet pipe/elbow than 1977 models.
1974 B-100 Auto model 1-0510
