About This File
Parts list from Toro Master Parts Viewer
7 pages 434.70KB
Transmission drive belt 8133 (4L x 73.8" or 1/2" x 73.8")

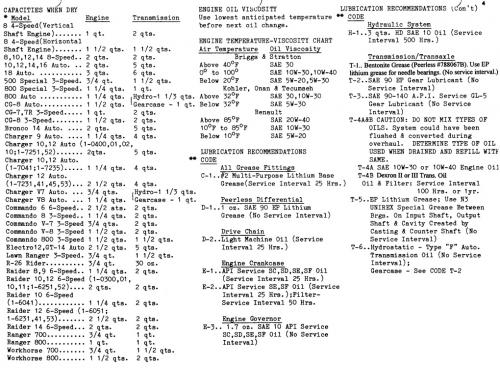

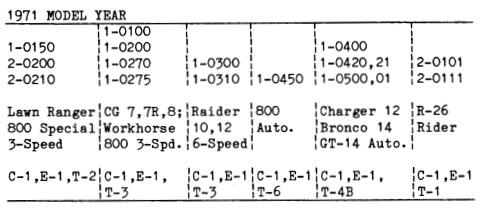

Lube chart SS
Notes on the Attachment list
The 5-0600 rear discharge mower deck is not correct for the CG-8. The 5-7362, 5-0610 and 5-0611 are correct.
The 5-0710 side discharge mower deck is not correct for the CG-8. The 5-2365, 5-0701 and 5-0702 are correct.
Details & Attachments
3 pages 112.23KB
1971 CG-8 Auto model 1-0200
1971 serial numbers that have shown up for the 1-0200
810064
810267
853213
