About This File
Parts list from Toro Master Parts Viewer
5 pages 420.69KB - Model 1-7251
5 pages 450.60KB - Model 1-7252
5 pages 450.86KB - Model 1-7253
Illustrated parts list link

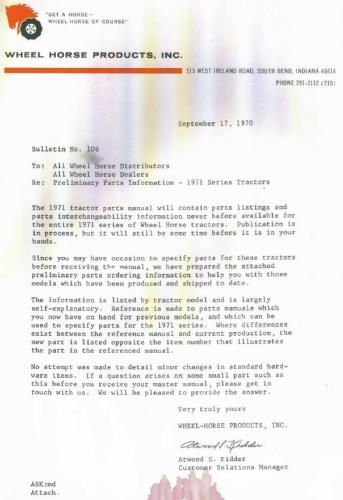

Use the 1971 parts list for the Charger 12 model 1-0400 with the following exceptions
For electric pto clutch see Electro 12 model 1-7255
Tractor 1971 1-0400 Charger 12 Parts letter.pdf
2 pages 287KB
5955 Sundstrand hydro pump gasket nla - 102759 gasket should work

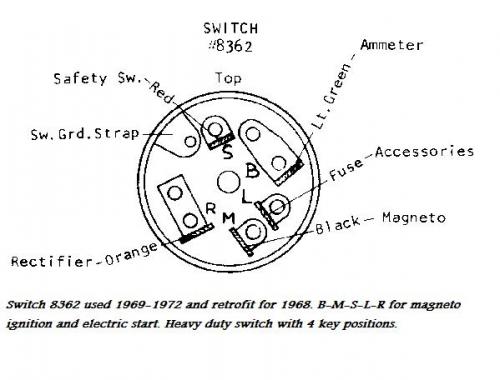

Terminals on 8362 magneto ignition switch may not be identified
1 page 126KB
Tractor drive belt # 7478 replaces # 4535 (HB/5L x 84.22" or 5/8" x 84.22")

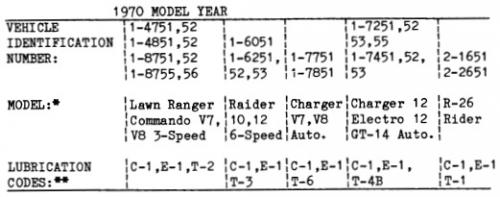

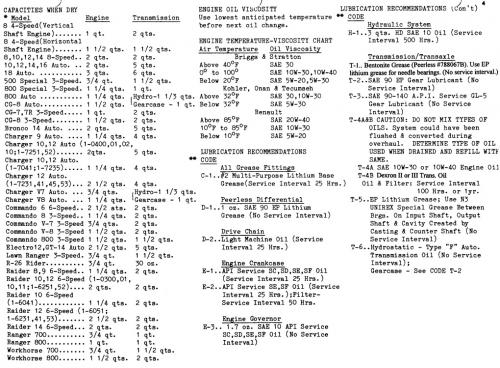

Lube chart SS
Wiring Color pdf model 1-7251
1 page 216KB
Details & Attachments
3 pages 115.18KB
1970 Charger 12 model 1-7251 - Uses Kohler K301S-47371c with breakerless magneto ignition

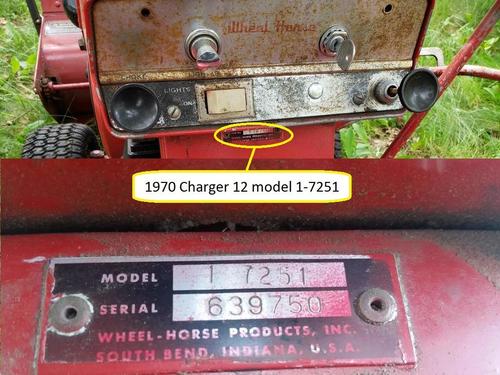

1970 serial numbers that have shown up for the 1-7251
639303
639332
639473
639538
639600
639750
639800
639806
663811
663825
663933
--------------------------------------------------------------------------------------------------------------------------------------------

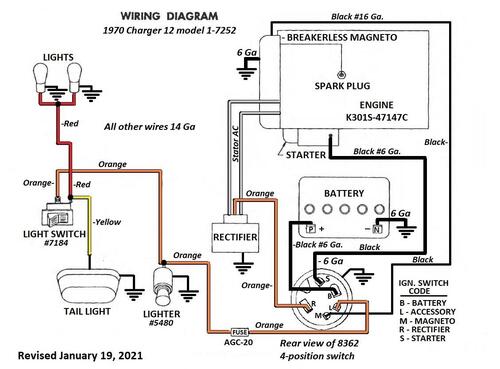

Wiring Color pdf model 1-7252
1 page 213KB
Details & Attachments
3 pages 115.18KB
1970 Charger 12 model 1-7252 - Uses Kohler K301S-47147c with breakerless magneto ignition
1970 serial numbers that have shown up for the 1-7252
638912
--------------------------------------------------------------------------------------------------------------------------------------------

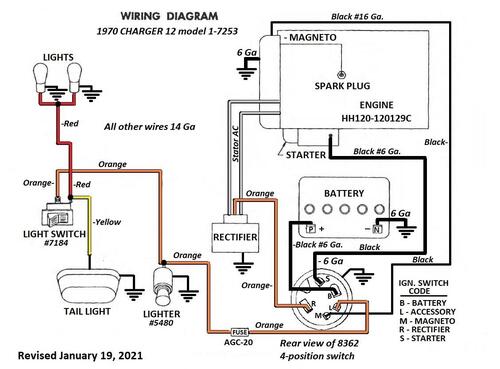

Wiring Color pdf model 1-7253
1 page 211KB
Details & Attachments
3 pages 115.01KB
1970 Charger 12 model 1-7253 - Uses Lauson HH120-120129c
1970 serial numbers that have shown up for the 1-7253
730037
730049
730059
730118
730119
730610
730678
730683
730754
