Model 5003 & 5010
IPL

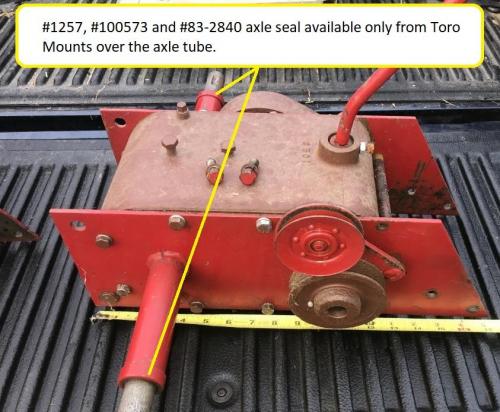

1" axles 2 of 3532 10-5/8" long with no splines for gear (Uses Woodruff keys)
4 two-piece pinion differential three-speed
3 pages 340.23KB
3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section I of the service manual.
For low resolution transmission service manual see
For high resolution transmission service manual see

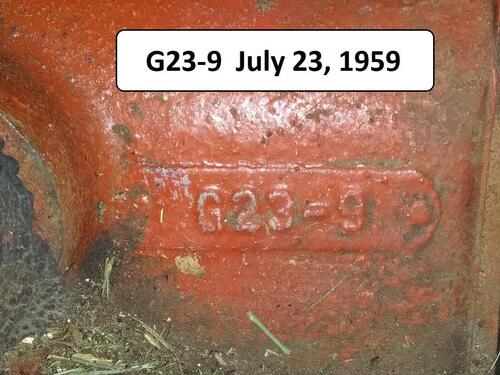

Model 5003 and 5010 transmissions used 1958-1961
1958 model RJ-58
1959 model RJ-59
1960 model 400
1960 model 500
1961 model 401
