Transmission Gear Uni-drive 3-speed 1.000in axle 4-pinion 5048 1965 IPL.pdf

Sign in to follow this

gwest_ca

2 Screenshots

About This File

Model 5048

IPL

1" axles with gear item #20 in illustration part #5577 (Axle part number 3904 is 10-5/8" long)

4 two-piece pinion differential three-speed

1 page 296.39KB



3-speeds have the brake drum mounted on the 11/44 (mushroom) gear. Use Section II of the service manual.



For low resolution transmission service manual see

For high resolution transmission service manual see

New shift rails in 1965

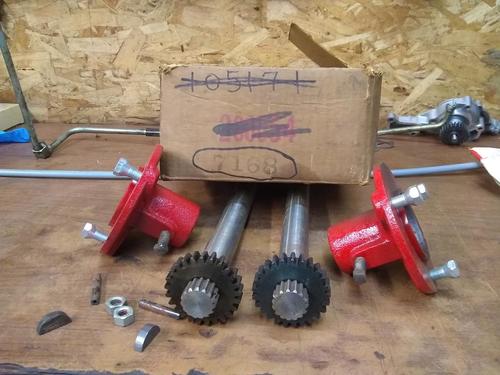

Model 5048 could be upgraded to a model 5053 with kit # 7168

5048 transmission used in

1965 model L-105 Lawn Ranger

1965 model L-155 Lawn Ranger




×
×
