Illustrated parts list #3314-845

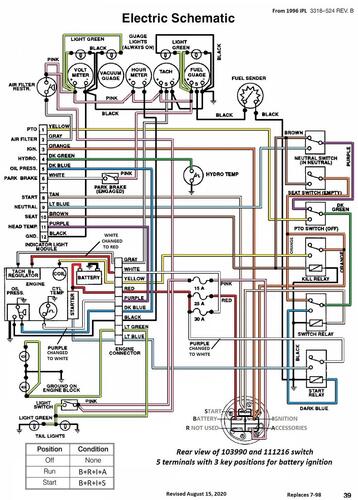

Wiring
76 pages 13.57MB
Wiring Color pdf
1 page 547KB
Part 1 of 3
25 of 76 pages 4.42MB
(Frame, Transaxle, Hydrostatic transmission, Front axle and steering, Clutch brake and speed control linkage, Sheet metal and covers)
IPL Part 2 of 3
25 of 76 pages 4.26MB
(Engines and exhaust, Onan engine, Starter)
IPL Part 3 of 3
26 of 76 pages 4.90MB
(Starter, Choke linkage, Throttle choke and fuel controls, Electrical system, Hydrostatic system, Wheels and tires, Drive belt and pulleys, Pto clutch and control, Seat, Decal, Wiring diagram)
Transmission drive belt 112801 replaced by 114895 - (HB x 82.95 or 5/8" x 82.95")
1991 520-H model 41-20OE02 - Serial 1000001-1999999
