About This File
Operator manual #810249R2 or 810249 R2 (This file uploaded by kdeatrick)
8 pages 7.73MB
IPL from Toro Master Parts Viewer
7 pages 389.40KB
Fits
1983 GT-1142 8-Speed model A1-114202
1983 GT-1642 Twin 8-Speed model A1-164202
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

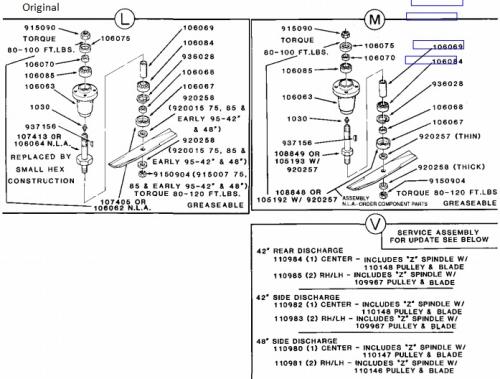

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)

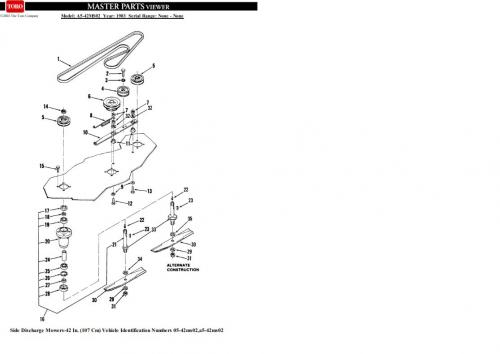

Mower Rotary 1983 42in SD model A5-42MS02
1983 serial numbers that have shown up for the A5-42MS02
41913 - Build date 1983 3046 Feb 15
