About This File
Operator manual #810306R1 or 810306 R1
7 pages 1.29MB

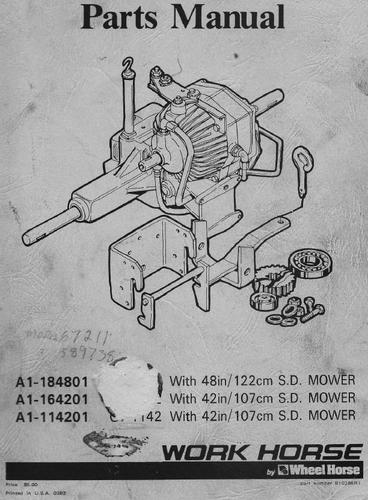

Illustrated parts list removed from Work Horse tractor ipl #810286R1
7 pages 7.8MB

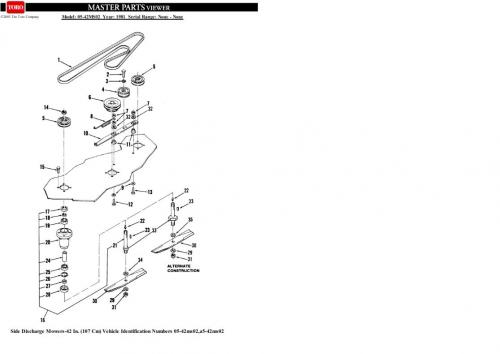

Illustrated parts list from Toro Master Parts Viewer
7 pages 388.11KB
This IPL includes the 48" deck so be careful selecting part numbers.
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

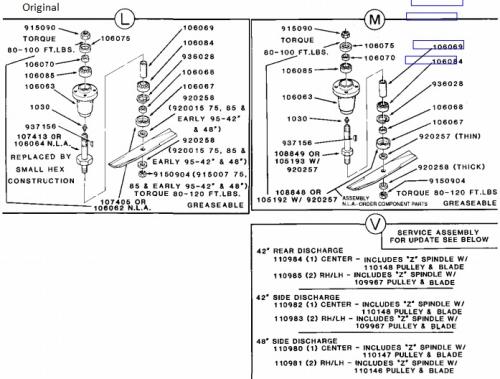

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1981 42in SD model 05-42MS02 - fits C-Series and GT-2500 tractors
1981 serial numbers that have shown up for the 05-42MS02
036011
038387 - Build date 1981 11xx
041637 - Could also be 1982 or 1983
043140 - Could also be 1982 or 1983
Mower Rotary 1982 42in SD model 05-42MS02 - fits C-Series, GT-1642 and GT-1848 tractors
1982 serial numbers that have shown up for the 05-42MS02
33225 - Build date 1981 x256 September 13 Sunday - Model year a guess
39008 - Build date 1982 2048 February 17 Wednesday
Mower Rotary 1983 42in SD model 05-42MS02 - fits C-Series, GT-1142, GT-1642 and GT-1848 tractors
1983 serial numbers that have shown up for the 05-42MS02
42472 - Build date 1982 2355 December 21 Tuesday
