About This File
Operator manual #803451R2 or 803451 R2
4 pages 3.52MB

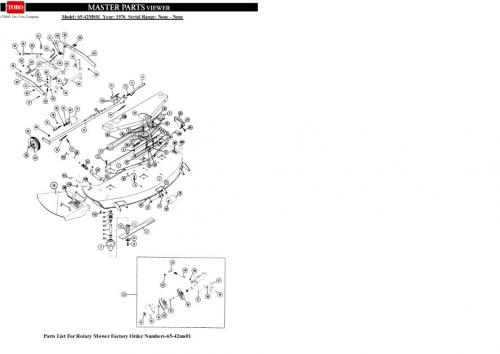

IPL from Toro Master Parts Viewer
3 pages 201.74KB
Shared with 48" deck so be careful selecting parts
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

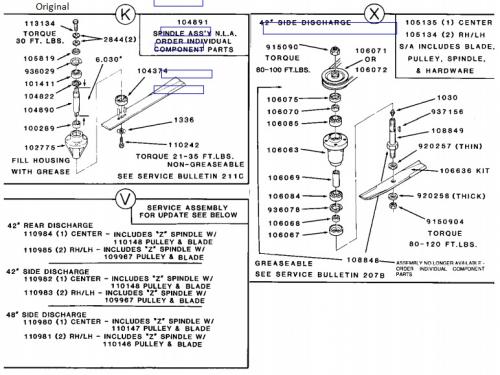

Mower spindle assemblies could be K, V, X or Z
For V and X see service bulletin 207B
6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021
Mower Rotary 1976 42in SD model 65-42MS01
1976 serial numbers that have shown up for the 65-42MS01
020599
020828 - Build date 1976 6174 June 22 Tuesday - Looks wrong
020987 - Build date 1976 6173 June 21 Monday - Looks wrong
