About This File
Operator manual #803881 is listed by Toro for 5-1012 - 7 pages 542.54KB
Operator manual #803975 Dated 7-74 may be a better choice - 5 pages 1.73MB

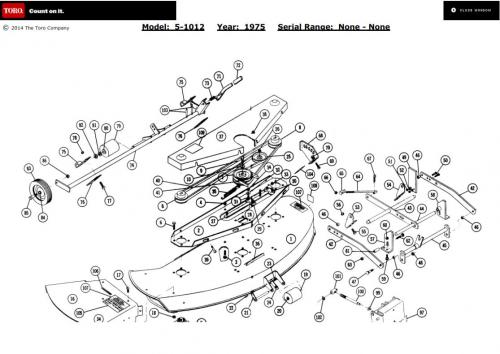

IPL from Toro Master Parts Viewer
3 pages 262.28KB
Shared with 48" deck so be careful selecting parts
Fits C-Series tractors
Drive belt 102742 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
Mower spindle assemblies could be J, N, U, V, X or Z
For N and U see service bulletin 221B
For X and V see service bulletin 207B
6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021
Mower Rotary 1975 42in SD model 5-1012
