About This File

IPL from Toro Master Parts Viewer
4 pages 268.72KB

Fits B-Series and C-Series tractors
Includes PSB #209 for parts list corrections  - idler arm for the spindle belt idler pulley - Some parts lists are not correct.


Drive belt 102741 (1/2" x 96.6") (Gates replacement BladeRunner 6638BR 17/32" x 96.75")

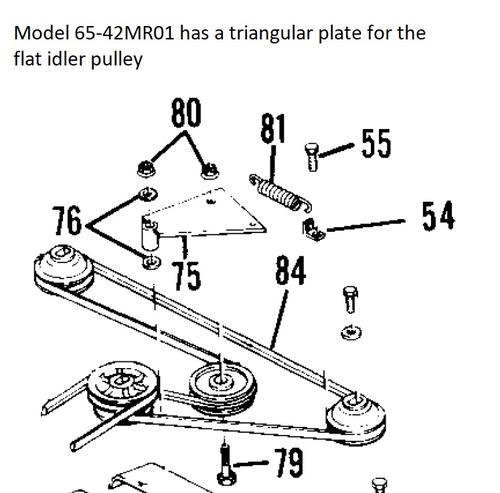

Spindle belt 6738 (1/2" x 86") - This model uses a triangular idler arm. See PSB 209.

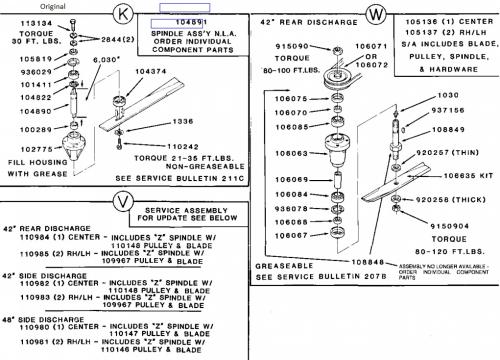

Mower spindle assemblies could be K, V, W or Z

For V and W see service bulletin 207B



106586 3-blade set replaces 105837 blade and no longer available (5/8" x 3/4" double-D center hole) Last 42" rear discharge deck to use these blades

Mower Rotary 1977 42in RD model 75-42MR01

1977 serial numbers that have shown up for the 75-42MR01
002961
004155 - Build date 1976 6353 December 19 Monday

008697
013418




×
×
