Mower Rotary 42in SD 1970 5-1423 OM IPL SN.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

Operator manual
IPL
10 pages 1.15MB
Dated 7-69 and Rev3/71

Includes PSB's #120 #221B
Fits Raider, Charger and Electro long frame models


Drive belt 9782 (1/2" x 69")
Spindle belt 6738 (1/2" x 86")

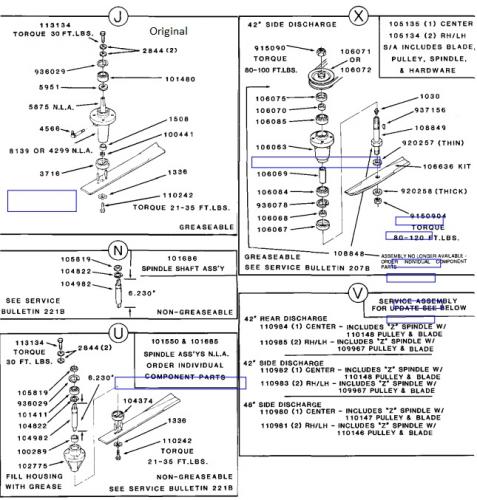

Mower spindle assemblies could be J, N, U, V, X or Z

For N and U see service bulletin 221B

For X and V see service bulletin 207B



6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021


Mower Rotary 1970 42in SD model 5-1423

1970 serial numbers that have shown up for the 5-1423
058839

682594
701403 to 702900 - See PSB #120
734825




×
×
