About This File
Operator manual #810306R1 or 810306 R1
7 pages 1.29MB

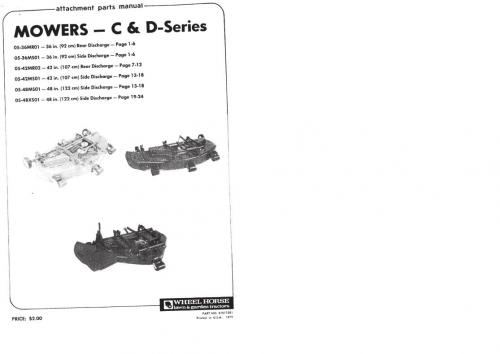

IPL #810172R1 or 810172 R1
7 pages 788.25KB
Fits C-Series tractors and 1100 Special
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1980 42in SD model 05-42MS01
1980 serial numbers that have shown up for the 05-42MS01
00023122 - Build date 1980 0071 March 11 Tuesday
00027405
00027670 - Build date 1980 0142 May 21 Wednesday
