About This File
IPL from Toro Master Parts Viewer
7 pages 331.82KB
Shared with 48" deck so be careful selecting parts
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

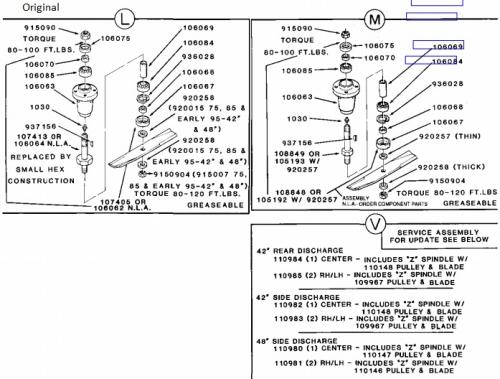

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1977 42in SD model 75-42MS02
1975 serial numbers that have shown up for the 75-42MS02
157493 - Could be a 75-42MS01 - Possibly made in Belgium - Located in Sweden
