About This File
IPL from Toro Master Parts Viewer
6 pages 333.10KB
Shared with 48" deck so be careful selecting parts
Fits C-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

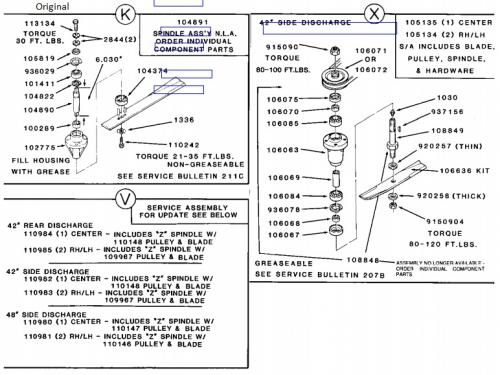

Mower spindle assemblies could be K, V, X or Z
For V and X see service bulletin 207B
6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D) Last 42" side discharge deck to use blades with 5/8" x 3/4" double-D center hole unless the spindles have been upgraded
Stens replacement - 3 of 350-041 still available March 6, 2021
Mower Rotary 1977 42in SD model 75-42MS01
1977 serial numbers that have shown up for the 75-42MS01
006174
012852 - Build date 1977 7014 January 14 Friday
157493 - Could be a 75-42MS02 - Possibly made in Belgium - Located in Sweden
