About This File
Operator manual #810657R1 or 810657 R1
8 pages 2.40MB
Dated 08/89

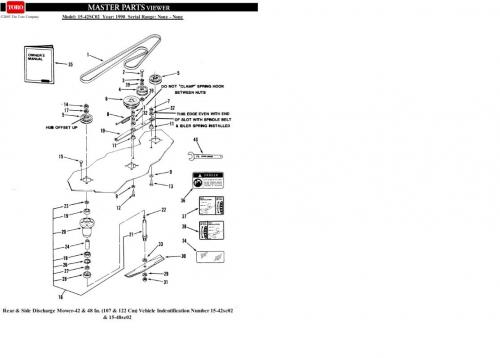

IPL from Toro Master Parts Viewer
This ipl is shared with 48" deck so be careful selecting parts
6 pages 407.99KB
Fits 300, 400 and 500-Series tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")
106077 replaced by 106636 3-blade set (3/4" round hole)
Front idler assembly mule
1/2" long spacer part number 101757 is on the outside between the pulley and cover.
5/8" long spacer part number 101734 is between the pulleys.
Spacer ID needs to slip over 3/4" shaft.
Mower Rotary 1990 42in SD model 15-42SC02
1990 serial numbers that have shown up for the 15-42SC02
0021465
0021654
0021746 - Build date 1989 9304 October 31 Tuesday
0022350 - Build date 1989 9331 November 27 Monday
0023217
0024827 - Build date 1990 0057 February 26 Monday
0024942
0026020 - Build date 1990 0082 March 23 Friday [0982]
0026172 - Build date 1990 0095 April 05 Thursday
0027766
