Parts list from Toro Master Parts Viewer does not appear to be correct. Use the 1971 IPL
Illustration for transmission only
7 pages 1.60MB
5955 Sundstrand hydro pump gasket nla - 102759 gasket should work
It appears Toro has used the 1970 GT-14 parts list for these 1972 models. Comparing the 1971 IPL to these the following 1970 differences were found.
Item # 57 front axle pin and plate 2736
Item # 58 right spindle 8146 replaced by 101448
Item # 59 left spindle 8147
Item # 64 steering shaft and pinion 9647
Item # 67 steering sector 4880
Item # 131 grill 8383
Item # 190 bracket 8845
Item # 191 speed clip 3023
Item # 239 SFE-20 amp fuse 9435 replaced by 101639
Item # 257 nylon bushing 938007
Item # 301 tool pin 1813 replaced by 106634
Uses Kohler K321S-60149A Listed at Kohler as having 15 amp stator and battery ignition
May have used 101876 or 101-876 ignition switch nla Guessing this may work - (101917 5-terminal 4-position S-R-B-I-A) replaced by 92-6785 5-terminal 4-position S-R-B-I-L ignition switch and 8658 replaced by 108544 solenoid

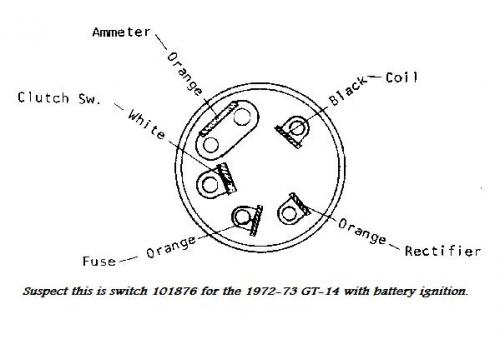

Terminals on 101876 battery ignition switch may not be identified - This switch is no longer available from Toro and appears to be a heavy duty switch designed to take a heavy starter load. The ipl's @ Toro also list a 8658 solenoid so a cheaper alternative switch should be available.
1 page 86.8KB

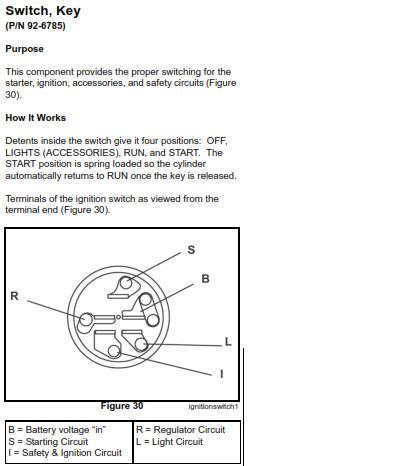

Should be a suitable replacement ignition switch 92-6785
2 pages 91KB

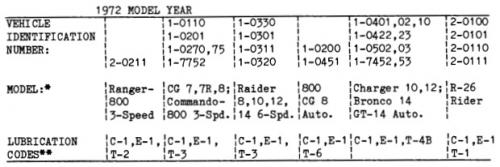

Lube chart SS
Details & Attachments
3 pages 114.25KB
Transmission drive belt 8334 - (B x 84.8" or 5/8" x 84.8")
1972 GT-14 model 1-0502

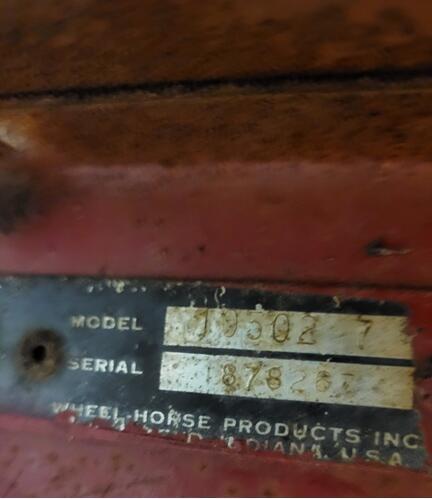

1972 serial numbers that have shown up for the 1-0502
855864 - Model 1-0502-7
855704
855902 - Model 1-0502-7
878187
878274 - Located in UK
878331
878410 - Model 1-0502-7
878412
878457 - Model 1-0502-7
896942 - Model 1-0502-7
897054 - Model 1-0502-7
897061 - Model 1-0502-7
-----------------------------------------------------------------------------------
Details & Attachments
3 pages 113.89KB
Uses Kohler K321S-60149A Listed at Kohler as having 15 amp stator and battery ignition
May have used 101876 or 101-876 ignition switch nla Guessing this may work - (101917 5-terminal 4-position S-R-B-I-A) replaced by 92-6785 5-terminal 4-position S-R-B-I-L ignition switch and 8658 replaced by 108544 solenoid
1972 GT-14 model 1-0503
