About This File
Illustrated parts list from Toro Master Parts Viewer
9 pages 659.49KB for model L-106
9 pages 660.21KB for model L-156

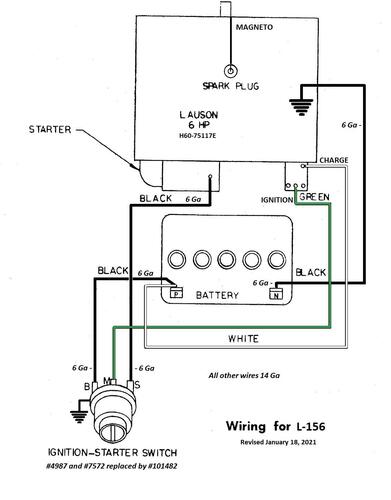

Wiring Revised pdf
1 page 207KB
Tractor drive belt for L-106 and L-156 #9691 - 1/2" x 70"
Mower belt 1555 replaced by 113912 (HAx44 or 1/2" x 44")
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades
Ignition switch for L-156 is 4987 replaced by 101482
Mower Rotary 1966 32in RD model RM-116 standard equipment

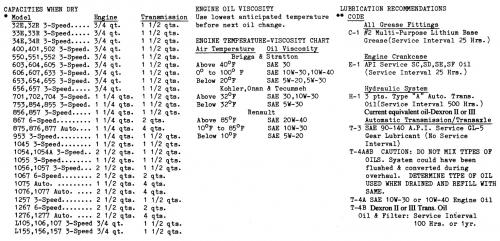

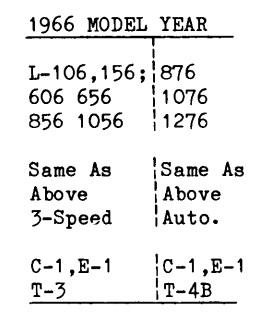

Lube chart SS
Details & Attachments
2 pages 109.07KB
1966 model L-106
1966 serial numbers that have shown up for the L-106
221013
221613
221739
221801
221861
221911
267646
Details & Attachments
2 pages 109.83KB

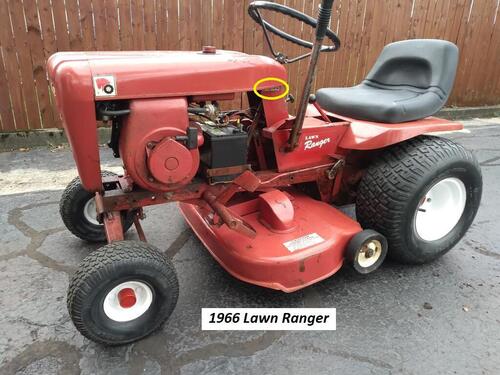

1966 model L-156

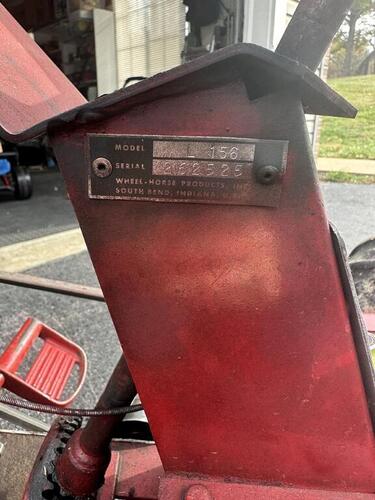

1966 serial numbers that have shown up for the L-156
177456
177645
177738
177768
177785
177909
199923
208076
219051
219178
219215
219813
249413
249419
249607
249635
249784
249799
249851
256042
256067
256340
262046
262055
262525
