About This File
Operator manual #810345R1 or 810345 R1
7 pages 450.87KB

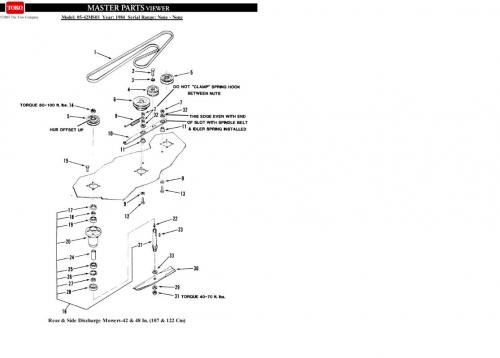

IPL from Toro Master Parts Viewer
6 pages 40953KB
Fits C-Series except C-195 and GT-1600 Twin tractors
Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Drive belt with front mower carrier and single cylinder engine 109956 (1/2" x 102")
Drive belt with front mower carrier and twin cylinder engine 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

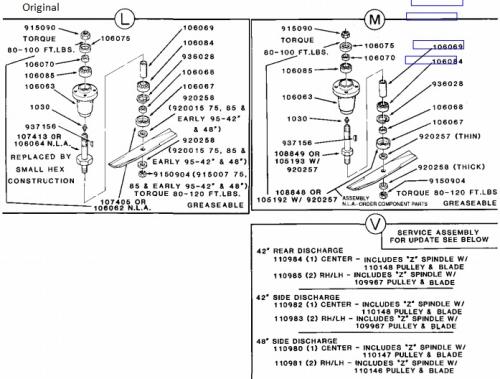

Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106077 replaced by 106636 3-blade set (3/4" round hole)
Mower Rotary 1984 42in SD model 05-42MS03

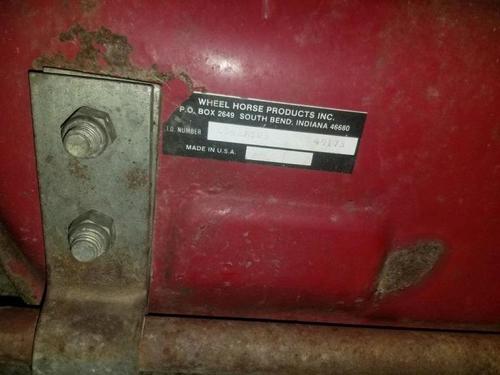

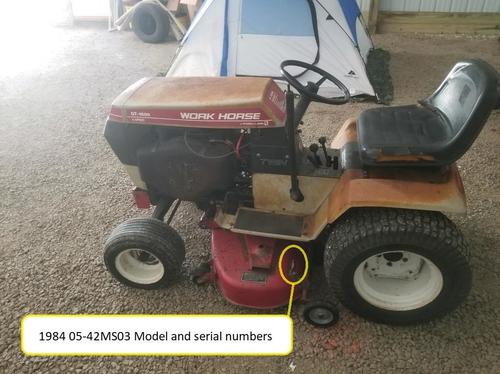

1984 serial numbers that have shown up for the 05-42MS03
49173
49521
