About This File
Operator manual #810345R1 or 810345 R1
7 pages 450.87KB
Dated 10/83

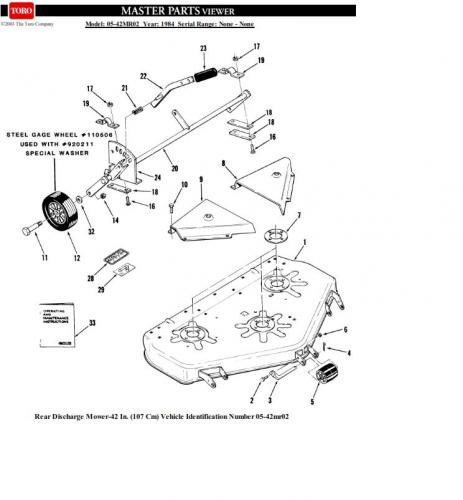

IPL from Toro Master Parts Viewer may include more than one size of deck but fail to identify what fits what. Look for an item number used more than once.
6 pages 384.55KB
Fits C-Series tractors
Drive belt 108834 (1/2" x 98") [Replaces 102741 as per PSB #272 in this application]
Spindle belt 106125 (1/2" x 89.03")
Mower spindle assemblies could be L, M, V or Z
For V see service bulletin 207B
106079 and 106108 blades replaced by 106635 3-blade set (3/4" center hole)
1984 42in RD model 05-42MR02
1984 serial numbers that have shown up for the 05-42MR02
036879 - Build date 1983 3166 June 15 Wednesday (9166 posted which is incorrect so guessed 3166)
045041
045194
046317
