Mower Rotary 42in SD 1975 5-1011 OM TIPL SN.pdf

Sign in to follow this

gwest_ca

4 Screenshots

About This File

Operator manual #803975  Dated 7-74
5 pages 1.73MB

IPL from Toro Master Parts Viewer
3 pages 219.39KB
Shared with 48" deck so be careful selecting parts

Fits C-Series tractors

Drive belt 102742 replaced by 94-2501 (1/2" x 103")
Spindle belt 6738 (1/2" x 86")

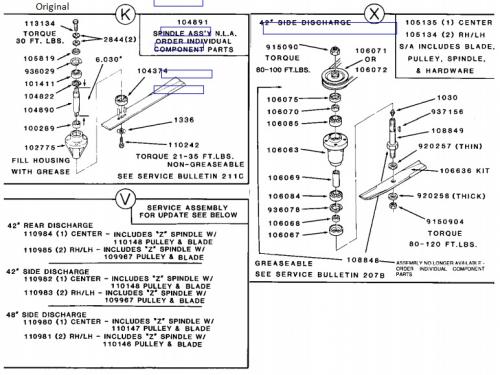

Mower spindle assemblies could be K, V, X or Z

For V and X see service bulletin 207B


6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021


Mower Rotary 1975 42in SD model 5-1011

1975 serial numbers that have shown up for the 5-1011
091307

099545




×
×
