About This File

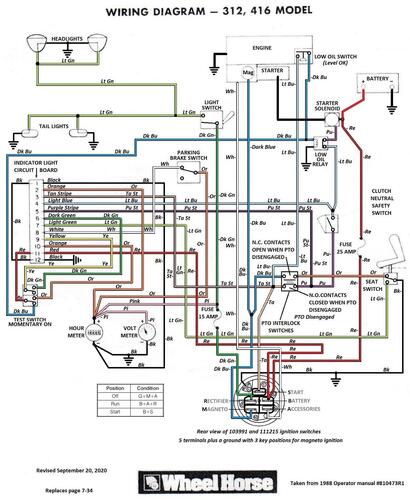

Detailed wiring from the Demystification Guide #492-4509 Revised April 24, 2020
5 pages 1.7MB Color pdf

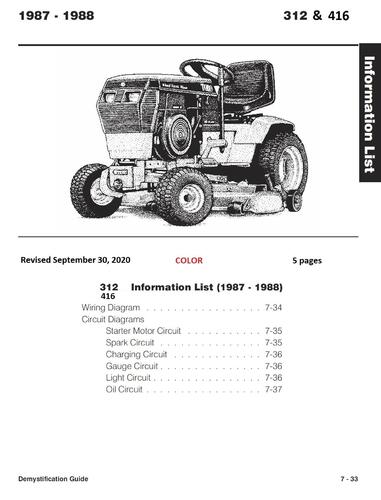

Pages p7-33 to p7-37

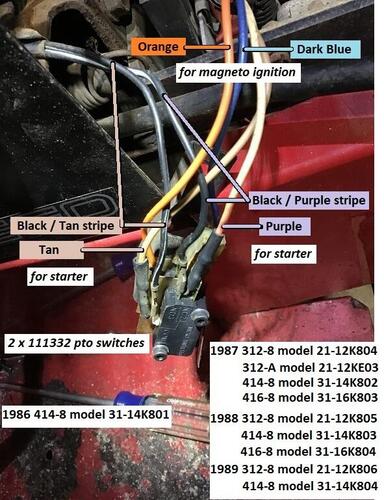

Pto switch wiring photo
1 page 198KB
Magneto ignition and 15 amp stator
Low oil switch
1988 416-8 model 31-16K804
Original removed because of mistakes
Detailed wiring from the Demystification Guide #492-4509
4 pages 103.77KB
p7-87 to p7-90 from the 492-4509 Demystification Guide
This is not correct for the 1987 414-8 which has a 3 amp unregulated charging system.
1988 has a 15 amp charging system
