About This File
Operator manual #810342R1 or #810342 R1
Wiring
28 pages 58.23MB
Dated 11/83
Operator manual #810342R1 or #810342 R1
Wiring
(Original 28 pages 37 MB)
28 pages 10.5 MB
Dated 11/83

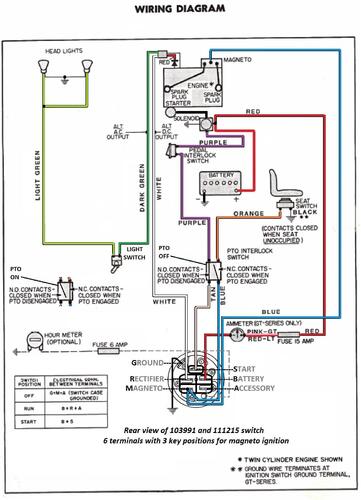

Wiring pdf Color
1 page 370KB
Part 1 of 7
4 of 28 pages 4.75MB

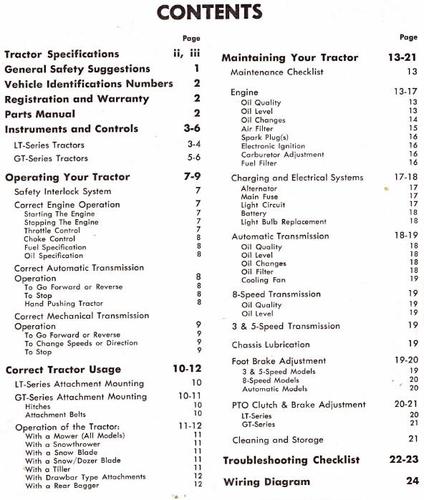

Cover, i-iii
Part 2a of 7
Pages 1-6 13.3MB
Part 3a of 7
Pages 7-9 6.5MB
Part 4a of 7
Pages 10-12 7.4MB
Part 5a of 7
Pages 13-16 9.5MB
Part 6a of 7
Pages 17-21 12.9MB
Part 7a of 7
Pages 22-24 3.9MB

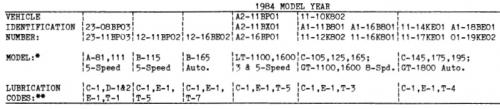

Lube chart SS
Tractor 1984 B-1136 model B2-11BX91 (On the Belgium list. Not in the manual but this is the manual listed @ Toro for this model)
1984 serial numbers that have shown up for the B2-11BX91
192814 - Decaled B-125 Three Speed - Located in Belgium
Tractor 1984 LT-1100 3-speed model A2-11BX01 Work Horse WorkHorse
Tractor 1984 LT-1100 5-speed model A2-11BP01 Work Horse WorkHorse
Tractor 1984 LT-1600 Twin 5-speed A2-16BP01 Work Horse WorkHorse

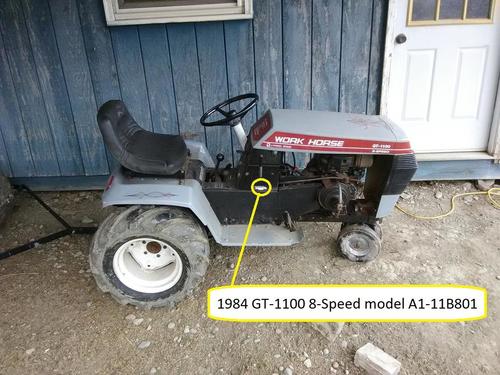

Tractor 1984 GT-1100 8-speed model A1-11B801 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
Engine-11HP-B&S Model 252417, Type 0664-01
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9"
Engine Thrust Bearing Toro 106499 is discontinued, available as 6007-2RSNR
1984 serial numbers that have shown up for the A1-11B801
14235

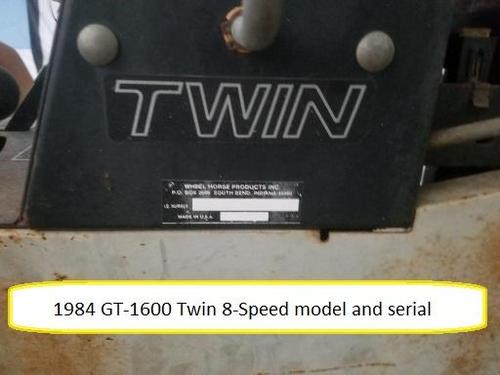

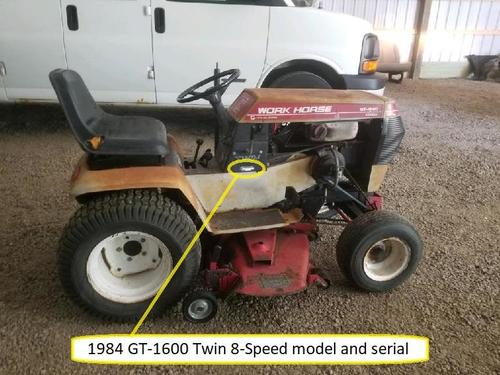

Tractor 1984 GT-1600 Twin 8-speed model A1-16B801 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
Engine-16HP-B&S Model 402437, Type 0694-01
Tractor drive belt 107939 replaced by 93-9809 - (HB x 83.5" or 5/8" x 83-1/2")

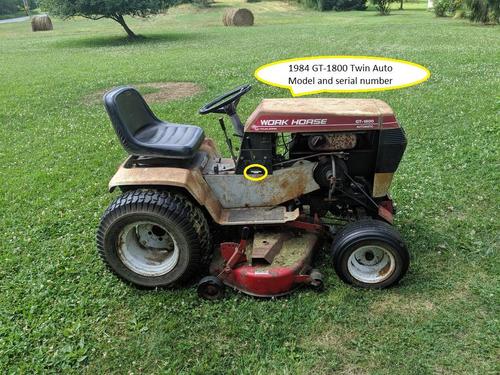

Tractor 1984 GT-1800 Twin Auto model A1-18BE01 Work Horse WorkHorse - Some used alternate inner axle bearing See PSB #369
Engine-18HP-B&S Model 422437, Type 0663-01
Transmission drive belt 108502 - (HB/5L x 83" or 5/8" x 83")
1984 serial numbers that have shown up for the A1-18BE01
14269
