About This File

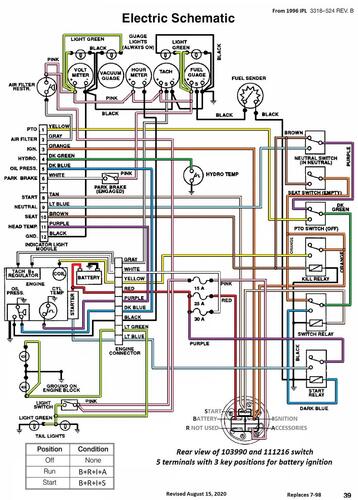

Detailed wiring from the Demystification Guide #492-4509 Color pdf
8 pages 3.1MB

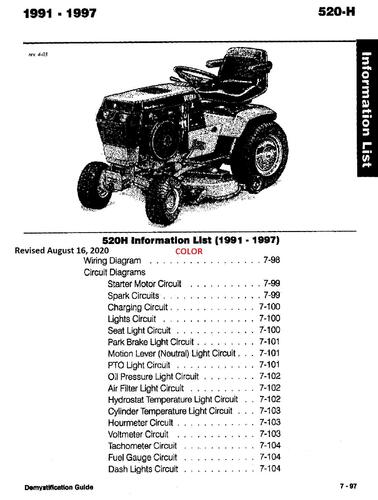

p7-97 to p7-104
Mistake in 492-4509 manual - The 113476 and 78-0060 tachometer does not get it's signal on the gray wire from the B+ terminal of the voltage regulator. This is also incorrect on page 3-10 describing the tachometer's operation.
The gray wire comes from one of the regulator's AC terminals.
1997 520-H model 73502 Serial 7900001-7999999
1997 520-H model 73521 Serial 7900001-7999999 (Export model 520-He)
