About This File

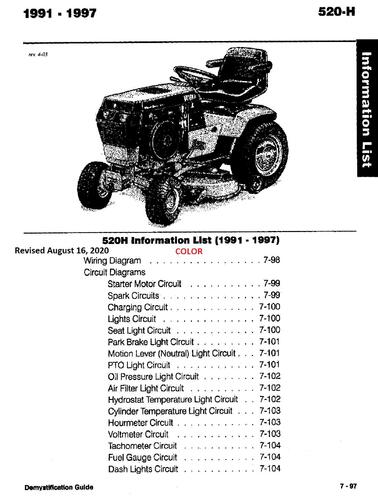

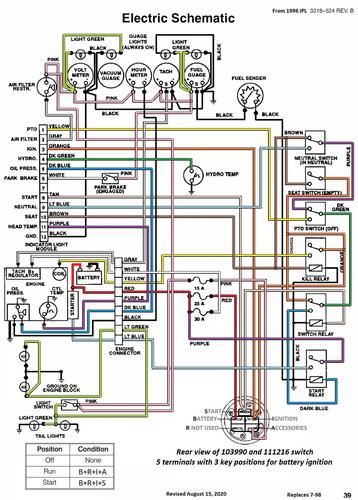

Detailed wiring from the Demystification Guide #492-4509 Color pdf
8 pages 3.1MB
p7-97 to p7-104
Mistake in 492-4509 manual - The 113476 and 78-0060 tachometer does not get it's signal on the gray wire from the B+ terminal of the voltage regulator. This is also incorrect on page 3-10 describing the tachometer's operation.
The gray wire comes from one of the regulator's AC terminals.
1996 520-H model 73501 Serial 69000001-69999999
1996 520-H model 73502 Serial 6900001-6999999 - (Has gold trim on hood and wheel covers)
1996 520-H model 73521 Serial 6900001-6999999 (Export model 520-He)
