About This File
IPL from Toro Master Parts Viewer
43 pages 3.59MB
This ipl is shared by similar models so each item may have more than one part number but fails to identify what model uses what part.

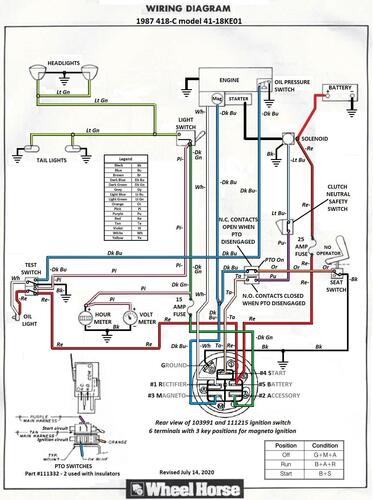

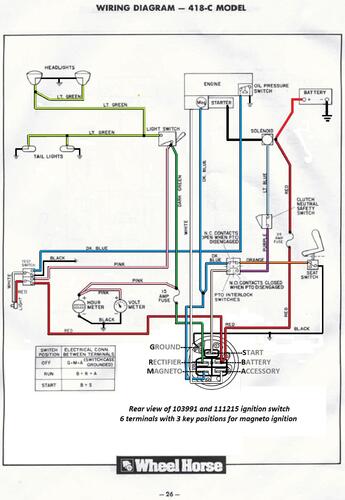

Wiring Color pdf
1 page 454KB
Original IPL #810480R1
On the Belgium list
Believe the engine numbers should be M18QS-24536

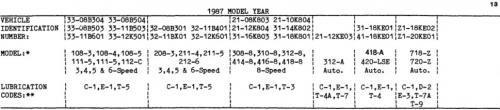

Lube chart SS
Details & Attachments
3 pages 117.32KB
Transmission drive belt 108501 - (HB/5L x 81.50" or 5/8" x 81.5")
1987 418-C model 41-18KE01 with magneto ignition and 15 amp stator

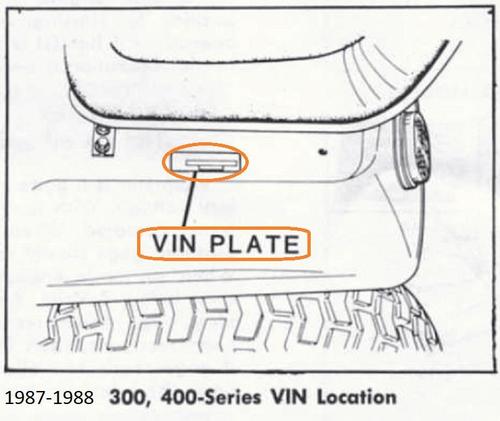

1987 serial numbers that have shown up for the 41-18KE01
020280
020308 Build date 1987 7068 March 09 Monday
020512
106753
