Tractor 1987 416 Wiring Detailed Rev.pdf

Sign in to follow this

gwest_ca

3 Screenshots

About This File

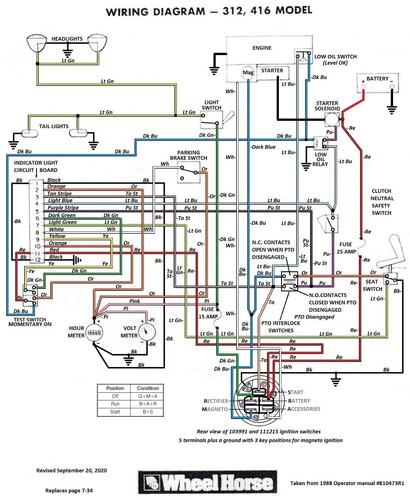

Detailed wiring from the Demystification Guide #492-4509

5 pages 1.7MB Color pdf

Pages p7-33 to p7-37

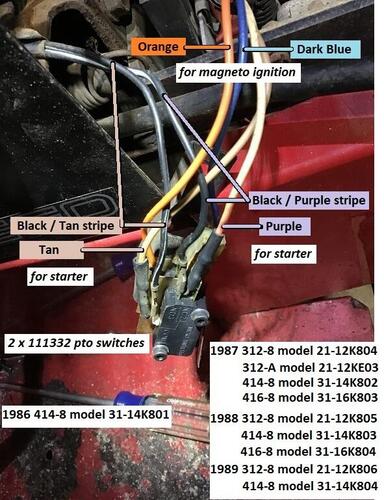

Pto switch wiring photo

1 page 198KB



Magneto ignition and 15 amp stator

Low oil switch



1987 416-8 model 31-16K803



Removed this file because of mistakes.

Detailed wiring from the Demystification Guide #492-4509

4 pages 103.77KB

p7-87 to p7-90








×
×
