Tractor 1989 312-8 Wiring Detailed Rev.pdf

Sign in to follow this

3 Screenshots

About This File

Detailed wiring from the Demystification Guide #492-4509 Color Revised
5 pages 1.6MB pdf
pages p7-27 to p7-31



Color wiring pdf

1 page 516KB

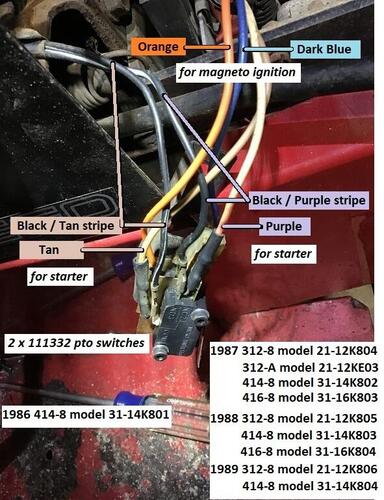

Pto switch wiring photo

1 page 198KB



15 amp stator and magneto ignition



1989 312-8 model 21-12K806



1989 312-8 model E1-12K802 - Export model 312-8e - Suspect the wiring is the same as for the domestic model




×
×
