About This File
Operator manual #A-5196
IPL
10 pages 1.15MB
Dated 7-69 and Rev3/71
Includes PSB's #120 #221B
Fits Raider, Charger and Electro long frame models
Drive belt 9782 (1/2" x 69")
Spindle belt 6738 (1/2" x 86")

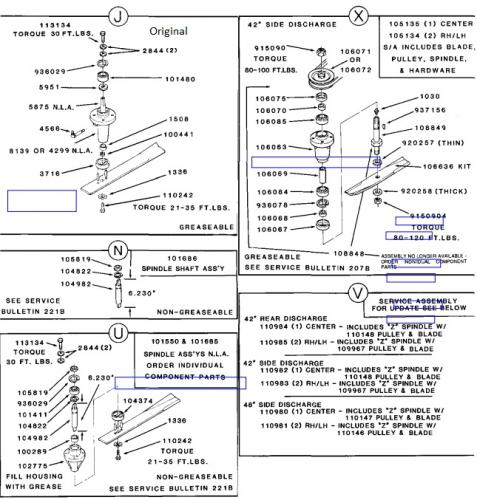

Mower spindle assemblies could be J, N, U, V, X or Z
For N and U see service bulletin 221B
For X and V see service bulletin 207B
6693 blade replaced by 100200 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Stens replacement - 3 of 350-041 still available March 6, 2021
Mower Rotary 1969 42in SD model 5-1422
1969 serial numbers that have shown up for the 5-1422
542224
548004
581541
