About This File
Operator manual #810437R1 - Correct oil capacities for single cylinder Kohler engines
Wiring
33 pages 2.44MB

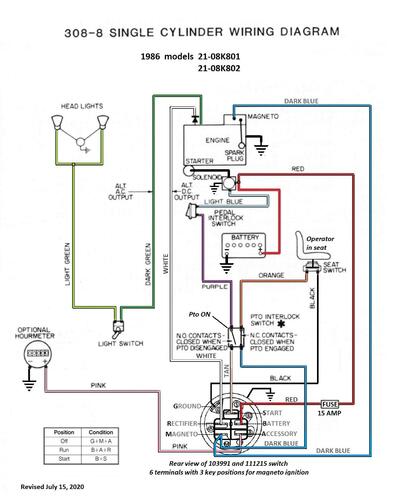

308-8 Color Wiring pdf
1 page 360KB

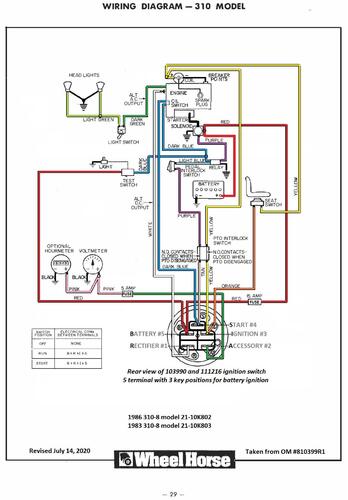

310-8 Color Wiring pdf
1 page 376KB

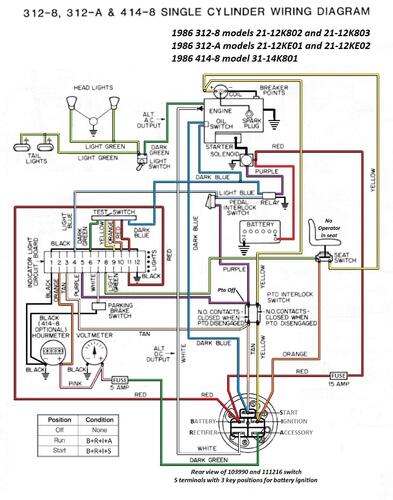

312 414 Color Wiring pdf
1 page 525KB
First year for low oil switch and relay on 310 and 312 models.
This manual replaced #810399R1 and shows the correct engine oil capacity for the low oil switch.
Appears the early and late model numbers identify a change made to the differential side bearings

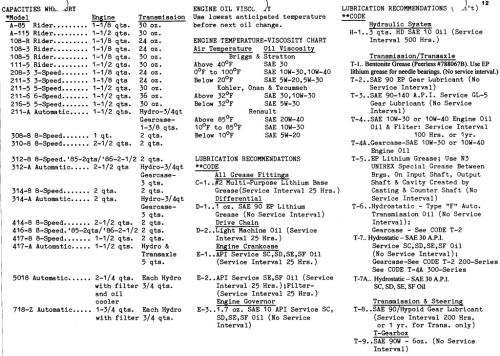

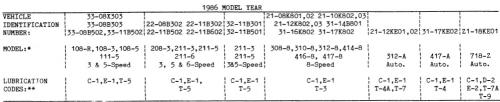

Lube chart SS
1986 308-8 model 21-08K801 - (1.25 amp unregulated dual circuit charging system)
1986 308-8 model 21-08K802 - (1.25 amp unregulated dual circuit charging system)
1986 310-8 model 21-10K802 - (3 amp unregulated dual circuit charging system)
1986 310-8 model 21-10K803 - (3 amp unregulated dual circuit charging system)
1986 312-8 model 21-12K802 - (3 amp unregulated dual circuit charging system)
1986 312-8 model 21-12K803 - (3 amp unregulated dual circuit charging system)
1986 312-A model 21-12KE01 - (3 amp unregulated dual circuit charging system)
1986 312-A model 21-12KE02 - (3 amp unregulated dual circuit charging system)
