Tractor 1969 WorkHorse 700 D&A OM IPL Wiring Rev SN.pdf

Sign in to follow this

9 Screenshots

About This File

Operator manual
IPL
Wiring
12 pages 3.11MB - #508-509
Dated 7/17/68

12 pages 2.21MB - #A-5241
Dated 3/70

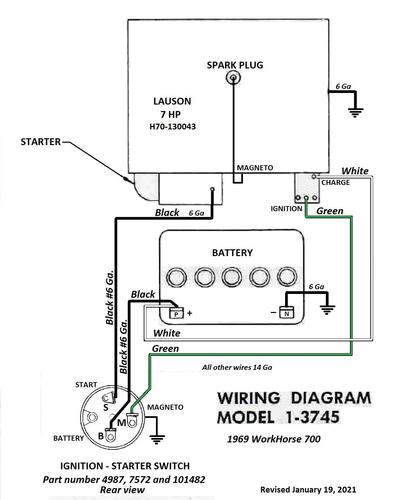

Wiring Color pdf for 1-3745 Electric Start model

1 page 251KB



Tractor drive belt for 1-3741 and 1-3745 #9691 - 1/2" x 70"

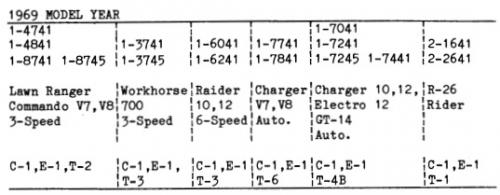

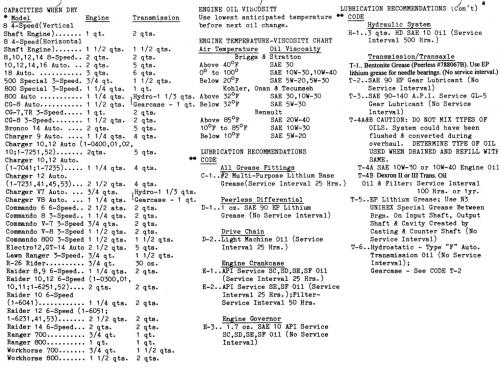

Lube chart SS


Details & Attachments
3 pages 113.72KB
1969 WorkHorse 700 model 1-3741 - Recoil start and wrong on Details page. Engine is correct - H70-130042
1969 serial numbers that have shown up for 1-3741
111294 - Made in Belgium
526559
526595
536349
539336



Details & Attachments
3 pages 114.56KB

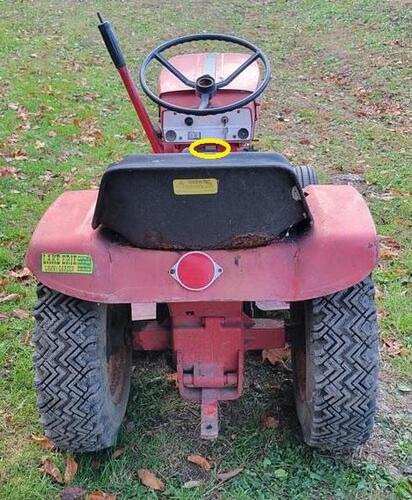

1969 WorkHorse 700 model 1-3745 - Electric start - H70-130043

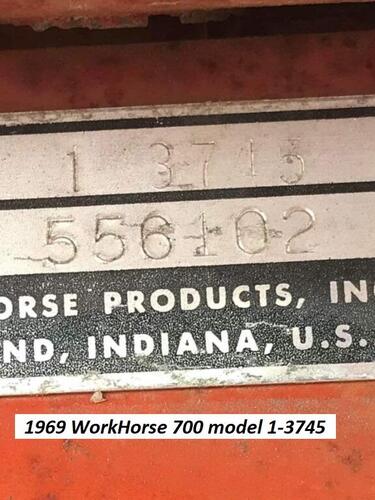

1969 serial numbers that have shown up for 1-3745
531804
531945

532198
536055
536194
536411
536754

550733
550869
550950

554063
554067
554193
556012

556095

556102




×
×
