About This File
Operator manual #357
IPL
Wiring
12 pages 1.19MB - B&W
12 pages 3.39MB - Color

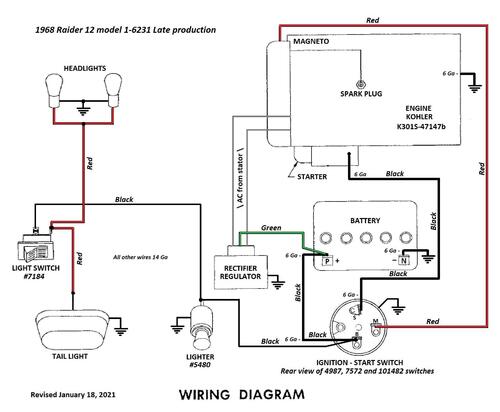

Wiring Color pdf - Original
1 page 300KB

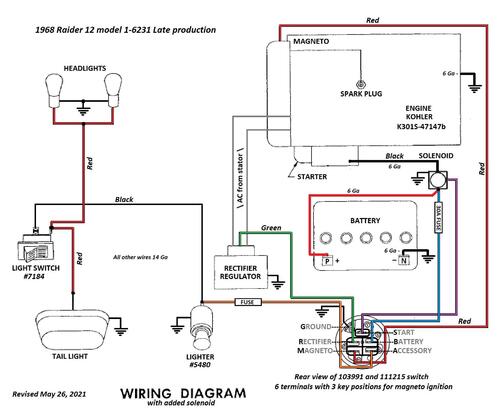

Wiring Color pdf - with 103991 switch and solenoid
1 page 368KB
Late production using Kohler K301S-47147b with Bendix starter, 10 amp alternator and magneto ignition with points and condenser Uses (~7572 3-terminal 3-position B-M-S) replaced by 101482 3-terminal 3-position B-M-S ignition switch
(Early production used Kohler K301S-4712b with starter/generator and battery ignition)
Transmission drive belt 78-7100 replaced by 7473 - HB x 81.9" or 5/8" x 81.9

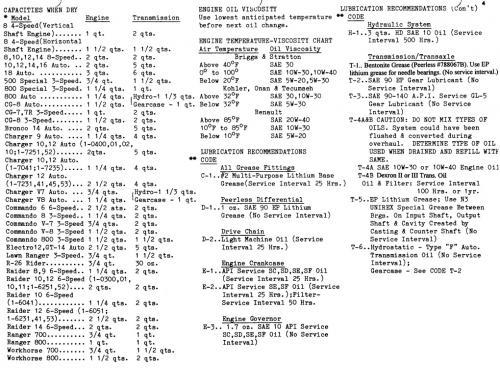

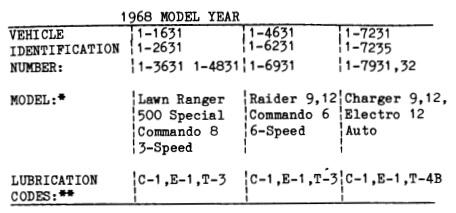

Lube chart SS
Details & Attachments - Details page is for early production
3 pages 116.88KB
1968 Raider 12 model 1-6231 - Late production (Engine oil capacity 2-1/2 quarts)
1968 serial numbers that have shown up for the 1-6231
400004 - This group is early production
400062
400086
400194
400262
400351
400403
400410
414506
414516 - Has Bendix starter so possibly a replacement engine
414685
414946 - This group is early production
This group is likely late production
420782 - Charger 12 model 1-7231 is late production with Bendix starter and magneto ignition spec 47147b
425043 - Has bendix starter
42512x
425183
425275- Has bendix starter
425308 - Has starter/generator so early production?
428468 - May be a Raider 9 model 1-6931
436510
436545
437097
437141 - Located in the UK
437142 - Located in PA
437408
437437
445005 - Has Bendix starter
445130 - Located in Sweden
457642
457743
481216
481360
481580
481671
494668
637318 - The 6 has been added by hand - Made in USA Located in Belgium
This group is likely late production
