About This File
Operator manual #396
IPL
Wiring
16 pages 1.03MB
Dated 8/14/67

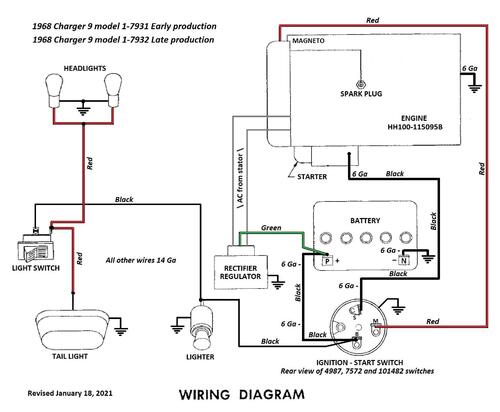

Wiring Color pdf
1 page 311KB
Long frame 45-1/2" wheelbase
Early production uses 5054 transaxle with 2-pinion bevel gear differential and 1-1/8" axles
(Late production uses 5062 transaxle with 10-pinion limited slip differential and 1-1/8" axles)
5955 hydro pump gasket nla - 102759 gasket should work
Tractor drive belt # 7478 replaces # 4535 - (HB/5L x 84.22" or 5/8" x 84.22")

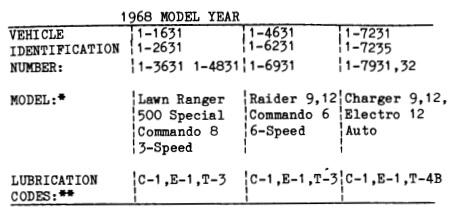

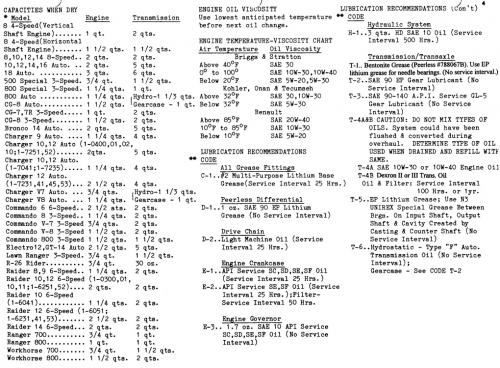

Lube chart SS
Details & Attachments
3 pages 116.56KB

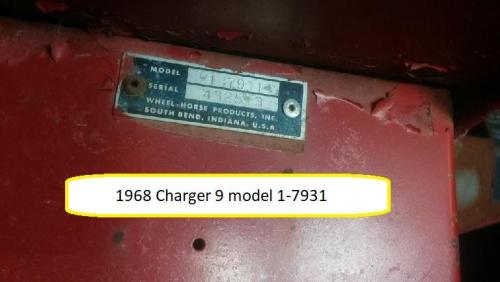

1968 Charger 9 model 1-7931 - Earliest models may have used HH80 or HH90 engine
1968 serial numbers that have shown up for the 1-7931
405155
405981
408188
408416
428067
428901
428980
429037
432510
432513
432660
432809
453795
453800
453835
453852
453896
468444
468591
468766
468767
469411
469455
