About This File
Operator manual #810264R1
10 pages 1.14MB
Dated 07/82
IPL from Toro Master Parts Viewer
4 pages 264.30KB
Part list is shared with 06-42SY02 that fits the C-195 Twin Auto. The lift tube for C-195 is item #33
The 06-42ST04 fits 300, 400 and 500-Series and the C-Series except C-195
Uses item #18 lift tube and #20 lift flag.
Lift hook flat washer 920013 is 5/8" SAE
Lift hook cotter pin 932034 is 3/16" x 1"
No longer includes 8-4311 lift assist spring kit. Now an option.
Spring Extension 90106 replaced by 4629
Drive belt for the C-Series except C-195, plus 300, 400 and 500-Series 9750 (5L x 69" or 5/8" x 69")
Drive belt for the C-195 Auto 110037 (HB x 77.0" or 5/8" x 77")
Snowthrower 1984 42in model 06-42ST04 - Last model to use a 3/4" drive shaft
1984 serial numbers that have shown up for the 06-42ST04
2026x - Build date 1983 3264 September 21 Wednesday
20306 - Build date 1983 3264 September 21 Wednesday

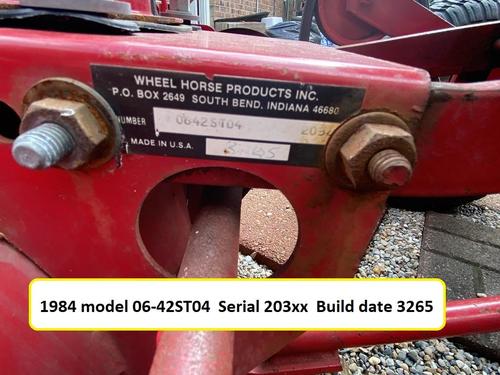

203xx - Build date 1983 3265 September 22 Thursday
20499
20500 - Build date 1983 3265 September 22 Thursday
xxxxx - Build date 1983 3269 September 26 Monday
20824 - Build date 1983 3270 September 27 Tuesday
23158 - Build date 1984 4200 July 18 Wednesday
Snowthrower 1985 42in model 06-42ST04 - Last model to use a 3/4" drive shaft
1985 serial numbers that have shown up for the 06-42ST04
26147 - Build date 1985 5190 July 09 Tuesday
27158 - Model year a guess
32013 - Model year a guess
33286 - Model year a guess
Snowthrower 1986 42in model 06-42ST04 - Last model to use a 3/4" drive shaft
Snowthrower 1987 42in model 06-42ST04 - Last model to use a 3/4" drive shaft
